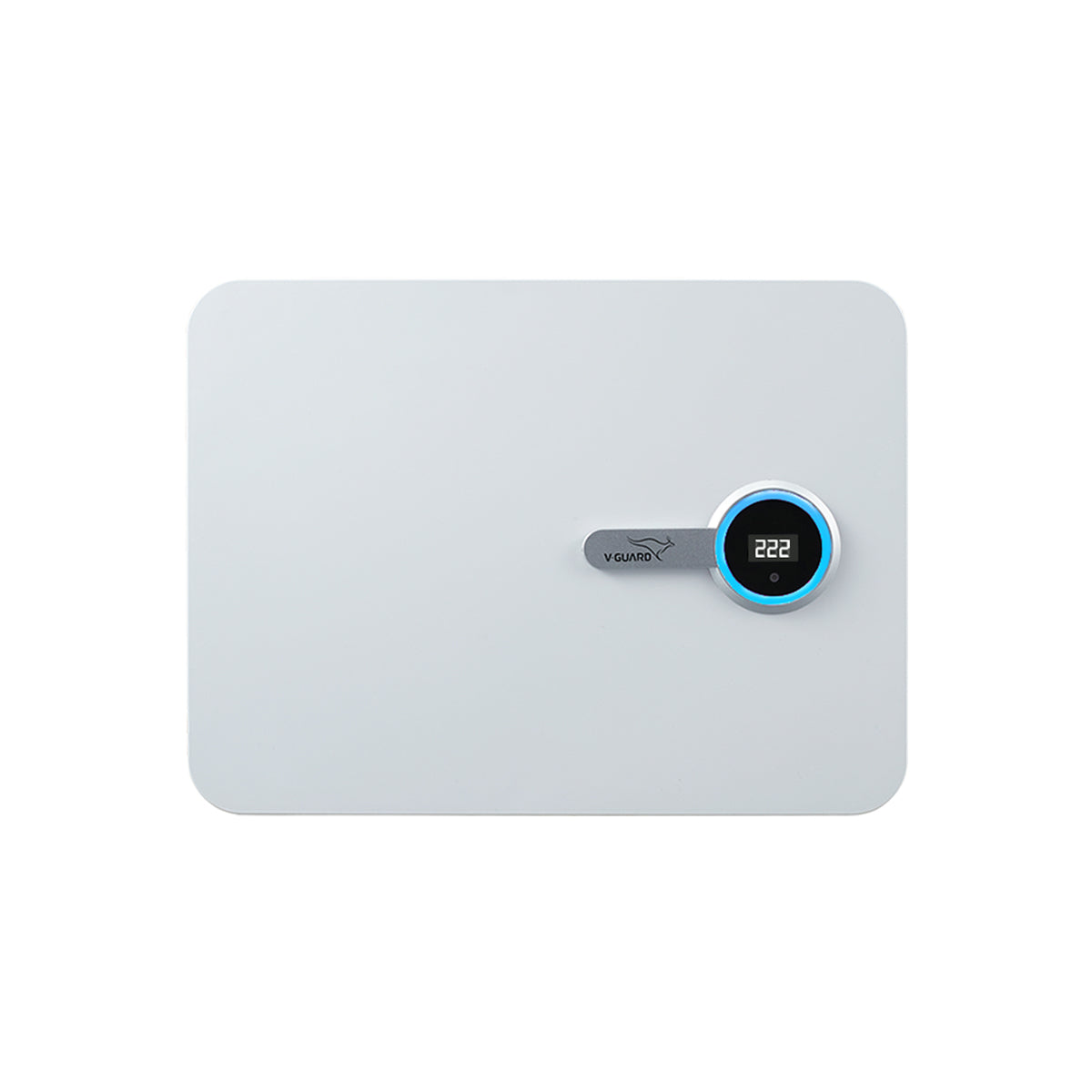

iD4 Ace 5540 AC Stabilizer for 1.5 ton Inverter AC (Working Range 130-280V)
MRP ₹ 6,400
20% Off
₹ 5,075
MRP
₹ 6,400
₹ 5,075
₹ 5,074
Add to cart
iD4 Ace 5540 AC Stabilizer for 1.5 ton Inverter AC (Working Range 130-280V)
iD4 Ace 5540 AC Stabilizer for 1.5 ton Inverter AC (Working Range 130-280V)
₹ 5,075(Inclusive of all taxes)
Service Charges*₹ 5,075
₹ 5,074
Key features
- AC stabilizer for 1.5 ton inverter AC
- Sleek ABS Cabinet

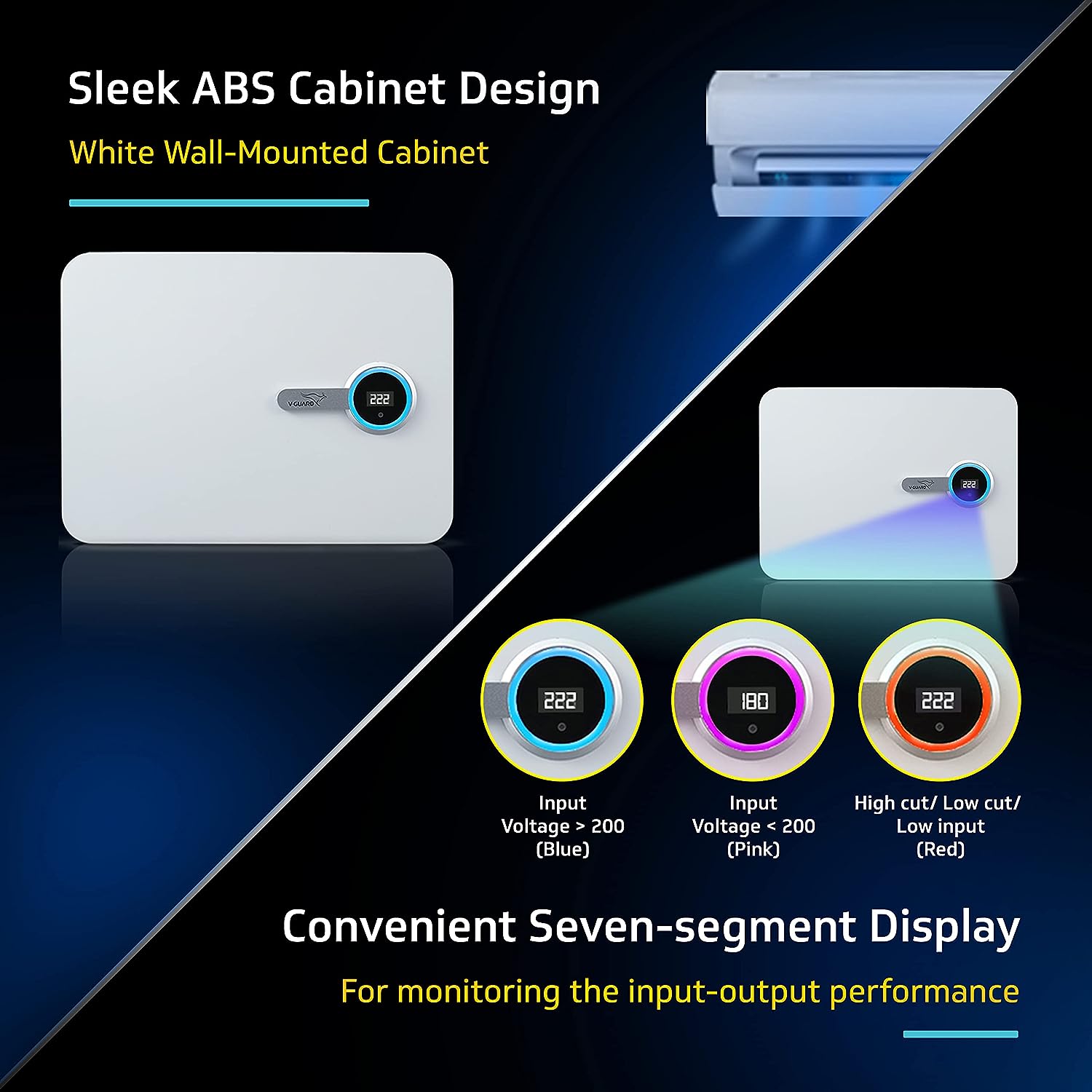

- Digital display with colour changing LED rings
- High and Low Voltage Cut Off
Model
Compatible Device
Color: White
Couldn't load pickup availability
Offers
Get upto 10% Instant Discount*
10% Instant Discount upto ₹ 2000/- on HSBC bank CC EMI (min.order value ₹2500/-)
5% Instant Discount upto ₹ 1500/-on HDFC CC/DC cards (min. order value ₹ 3000/-) *
1% Instant Discount on UPI*
Overview
Protect your AC and enjoy complete peace of mind with V-Guard AC Stabilizer Series. Equipped with class-leading features, V-Guard AC Stabilizers are designed to complement the interior of your house, making it smart in design & savvy in safety. V-Guard ID4 Ace 5540 Stabilizer for 1.5-ton Inverter AC is the perfect solution for protecting your inverter AC from voltage fluctuations. In addition to these features, iD4 Ace 5540 also features a digital display with colour changing LED...
Specification
Model
iD4 ACE 5540
Sub Category
AC Stabilisers
Compatible Device
AC
AC Compatible
Upto 1.5 Ton
Referigerator Compatible
N/A
Material
ABS

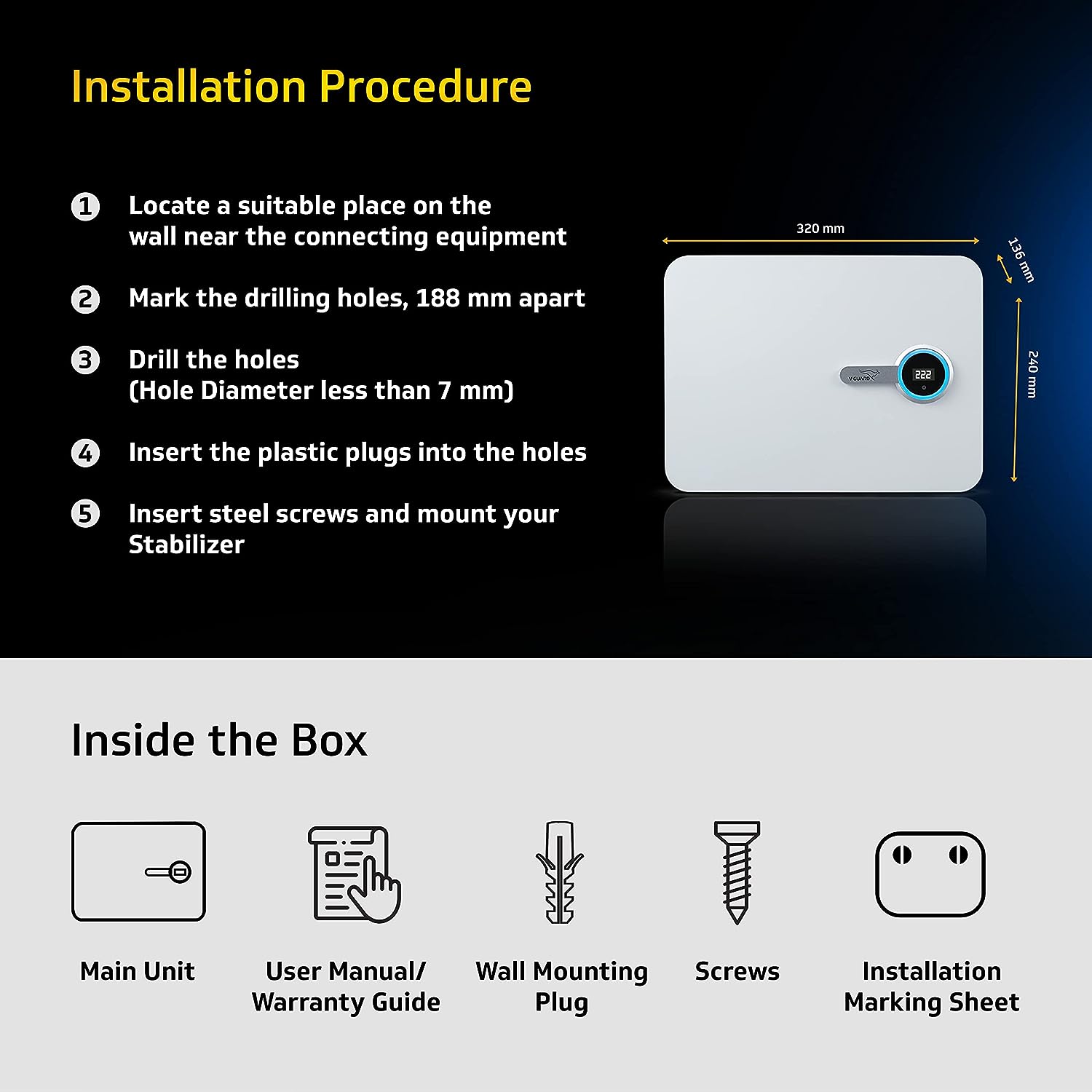

Mounting Type
Wall Mount
Color
WHITE
Included Components
1. Instruction manual & Warranty card 2. Marking sheet 3.Mounting screws & Wall plugs
Warranty Period
3 Year
Warranty Type
Onsite
Manufactured By
V-Guard Industries Ltd.
Country of origin
INDIA
Technical Specification
DimensionLxBxH (mm)
320 mm X 240 mm X 135.4 mm
Device capacity/Size
Inverter AC Up to 1.5 Ton
Load Capacity
12A
Voltage
130 V-280 V
Dimension With Package-LxBxH (mm)
351 mm X 175.5 mm X 275.4 mm
Weight with Package
7.5 kg
FAQs
Q:1. What is an electronic voltage stabilizer and do I need it?
A:Voltage Stabilizers, as the name suggests, help stabilize the voltage. This means, if the supply voltage fluctuates or varies, it automatically brings it to the desired range. Power surges can damage or destroy your household appliances and electronics, voltage stabilizers help operate the connected appliance/equipment in a safe voltage range.
It does so by using a combined mechanism of an auto transformer and electro-mechanical relays.
Q:2. How do I select the right stabilizer for my equipment?
A:A simple way to select the right stabilize
Check the Voltage & current rating of the device. It is written on the sticker near power socket else check the manual
In India typically the voltage will be 220V
Multiply 220 x Current of all devices and then add the individual device's VAs. Add a 20-25% safety margin to arrive at stabilizer rating. If you have plans to add more devices later, you can keep buffer for them
You should also consider the surge current which flows when you switch on the device
Q:3. How does the stabilizer protect the connected equipment?
A:The stabilizer will give a stabilized and safe voltage to the connected equipment within the specified limit even if the input voltage is high or low. It does so by using an auto transformer having a number of tapings, which will be selected as primary/ secondary for step up/ step down operations in accordance with the input voltage level. The tapping selection is done by using appropriate arrangement of relays.
Q:4. Is it necessary to use a stabilizer even if my refrigerator is stabilizer free?
A:Yes, no matter what the model, a stabilizer is required. There is no stabilizer inside the refrigerator. Refrigerator companies claim that it can work at both, low and high voltage. But operating the refrigerator at a low voltage affects its cooling efficiency and its life. Also, there is no low voltage cut-off & high voltage cut-off in the refrigerator. This is the reason major refrigerator companies insist on using a good quality voltage stabilizer, in their warranty card.
Q:5. Can I use normal TV stabilizer for my LCD TV?
A:It is advisable to use specially designed V-Guard LCD TV Stabilizer to protect and enhance the performance of your LCD TV. Compared to CRT TVs, the LCD / LED TVs are more sensitive to voltage fluctuations and spikes. The working ranges of LCD / LED TVs are from 90V to 290V. It shows that these TVs are more sensitive to high voltages.
Q:6. Can I use TV stabilizer for my refrigerator?
A:No, because the working range requirement for refrigerators and TV are different. Refrigerators require stabilizers with low voltage cut-off and time delay other than the high voltage cut off. However, the TV stabilizers are only equipped with a high voltage cut-off.
Q:7. Do I require installation for my V-Guard stabiliser?
A:V-Guard doesn’t offer installation service for stabilisers. Stabilisers can be installed at home either by you or a local technician.
Q:8. How can I get service help?
A:Our customer care will be available to support you on 0120- 4850100 or you can send your complaint on line via vg.care@vguard.in. We offer nationwide service center support.
Other Customers Also Bought

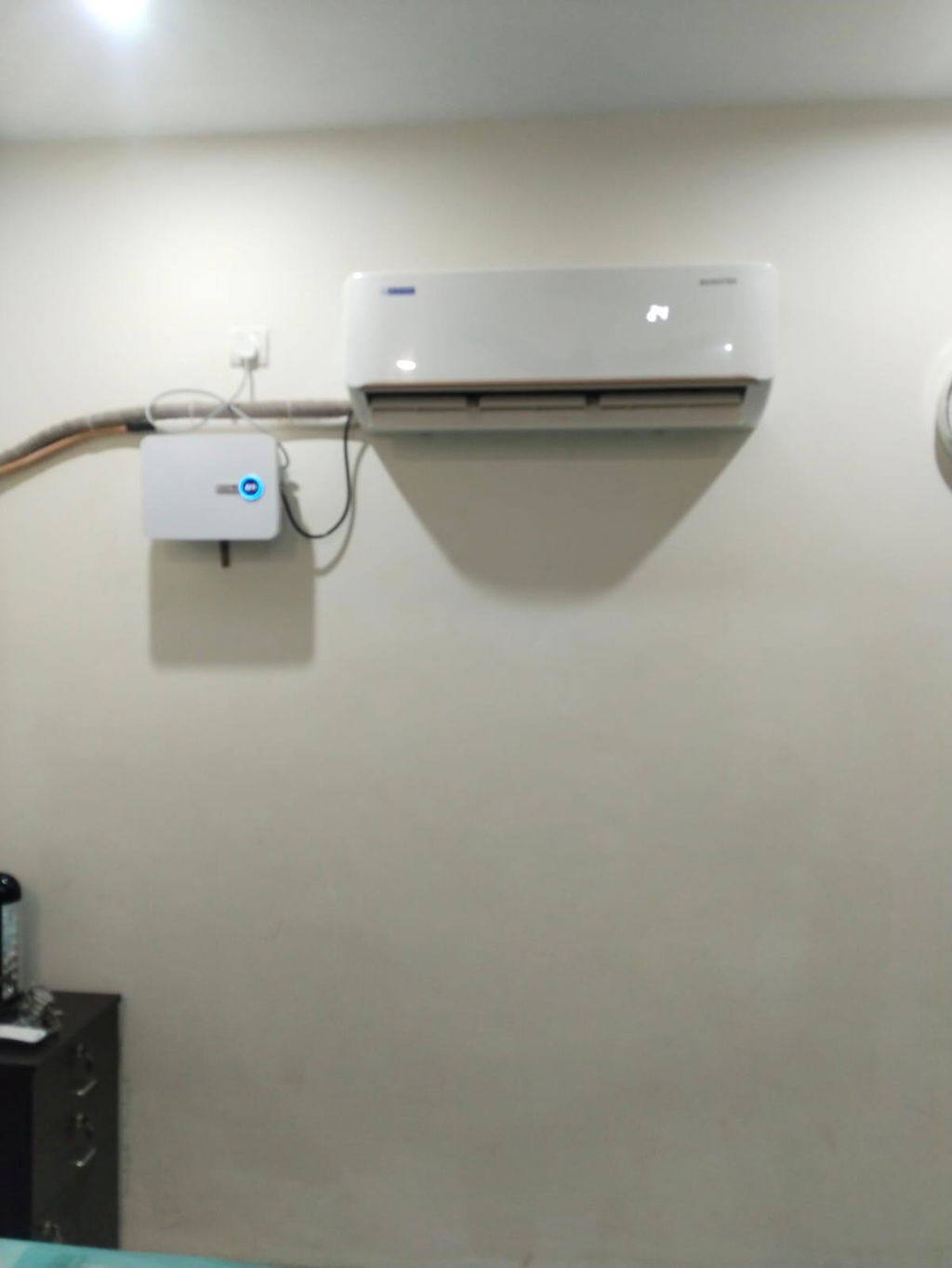

It functions perfectly for what it is designed to do. When I get high voltage it reduces the voltage to required value. When I get low voltage it increases the voltage to required value. Worth buying the product. One thing I would like to have is metal body rather than abs plastic.
