iD5 Ace 5540 AC Stabilizer for 2 ton Inverter AC (Working Range 130-280V)

Specs Technical Specification FAQs

MRP ~~₹ 7,490~~ 23% Off ₹ 5,749

Add to cart

Features Specs Technical Specification FAQs

1 8

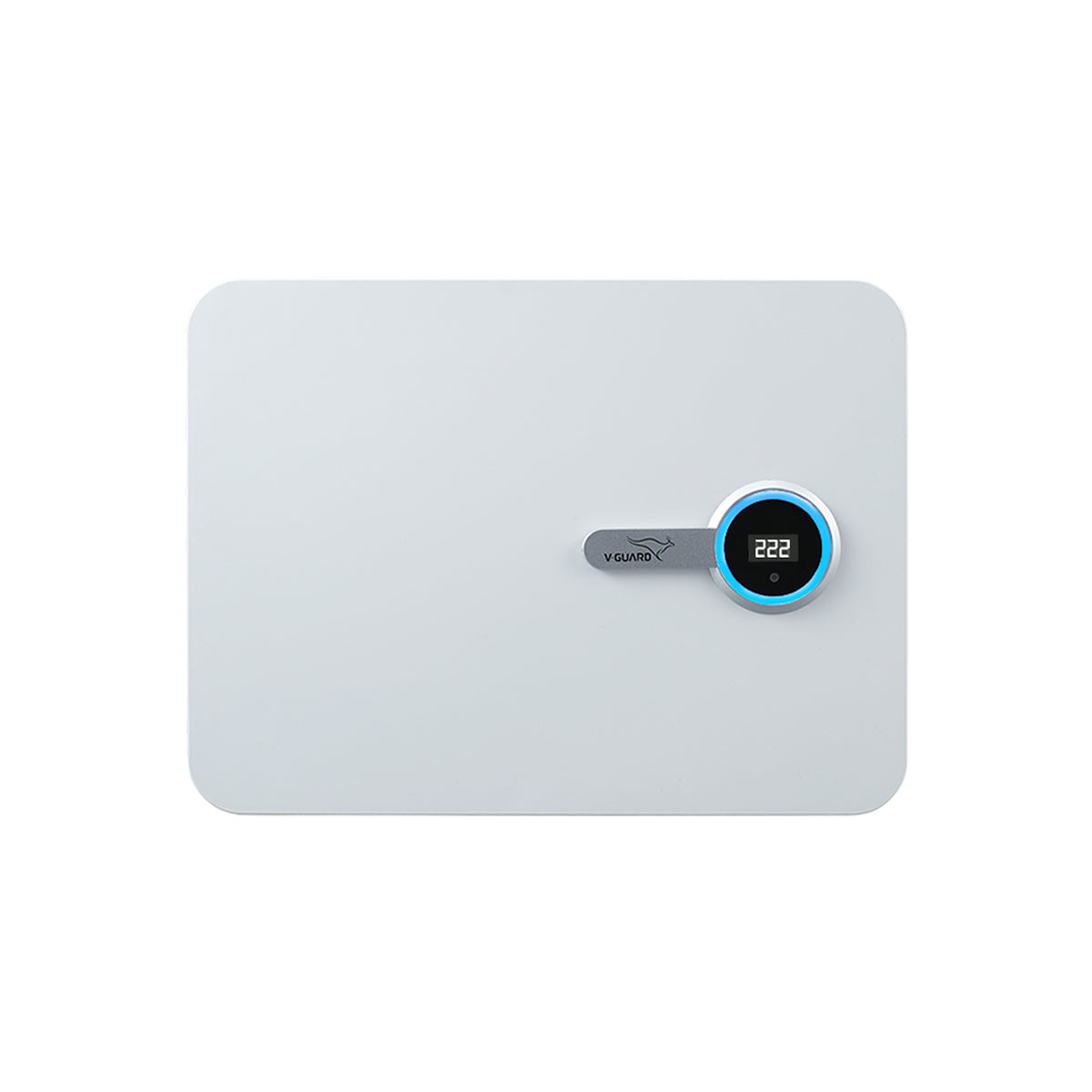

iD5 Ace 5540 AC Stabilizer for 2 ton Inverter AC (Working Range 130-280V)

Name: iD5 Ace 5540 AC Stabilizer for 2 ton Inverter AC (Working Range 130-280V)
Brand: V-Guard Industries Ltd.
SKU: 3001902
Price: 5749.0 INR
Availability: InStock

MRP ₹ 5,749

MRP ~~₹ 7,490~~ 23% Off ₹ 5,749

₹ 5,749(Inclusive of all taxes)

Service Charges & Mobikwik Cashback Offer*

Key features

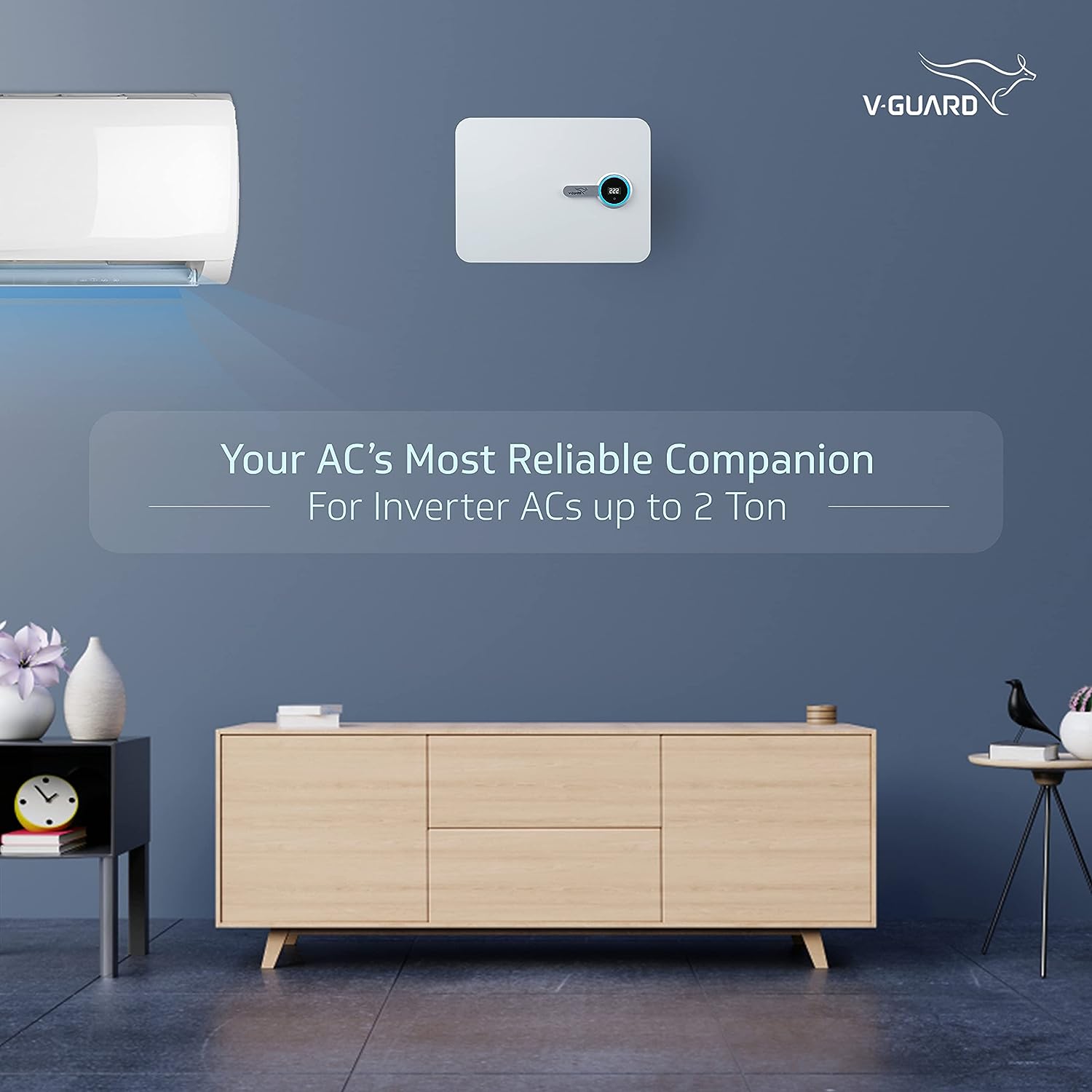

AC stabilizer for 2 ton inverter AC

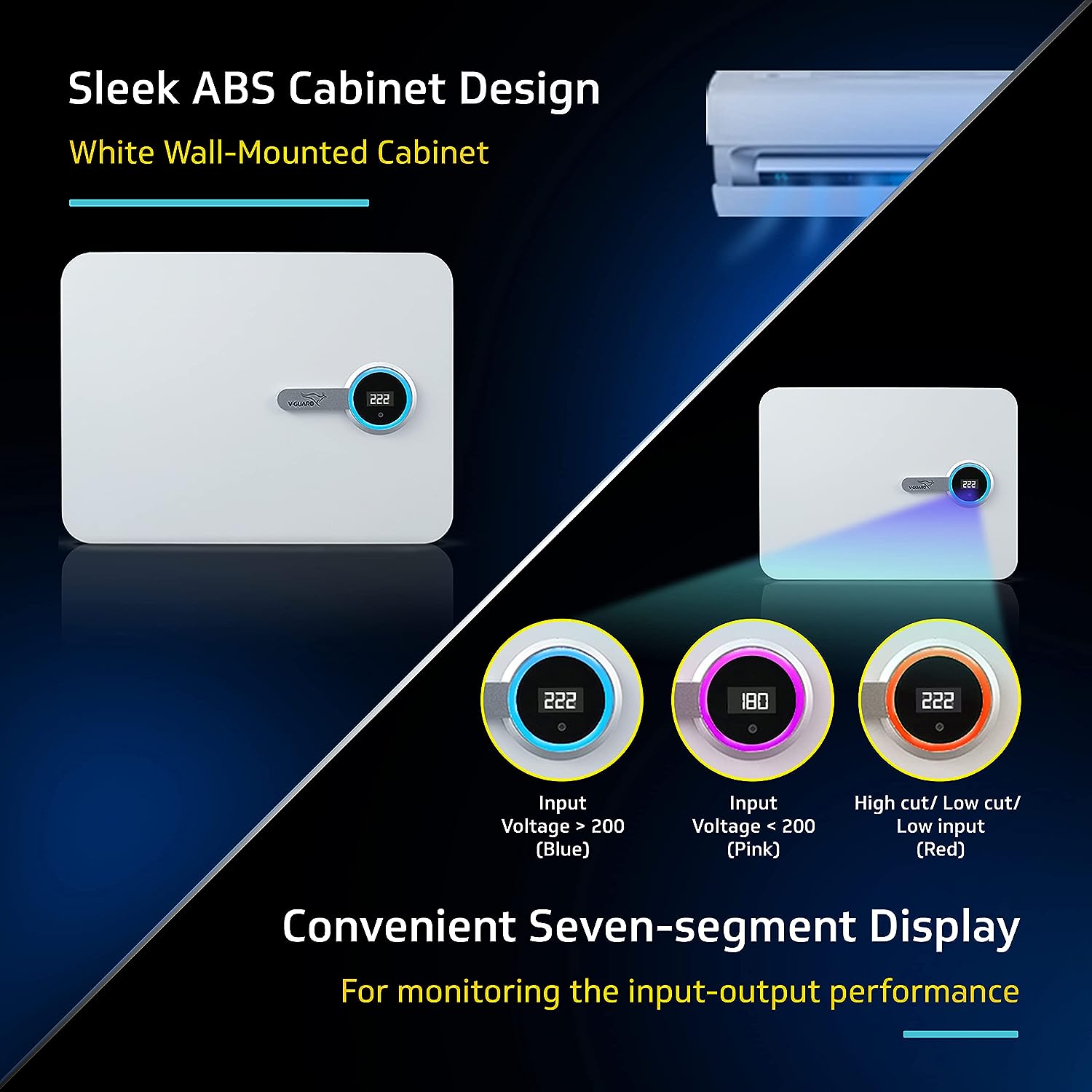

Digital display with colour changing LED rings
EMI filter protection
Intelligent Time Delay System
High and Low Voltage Cut Off

Model

iD4 ACE 5540

ID5 ACE 5540

Compatible Device

Inverter AC Up to 2 Ton

Color: White

Offers

Cash On Delivery available

Pay at the time of delivery. No advance payment needed*.

Get 10% cashback upto INR 500 via Mobikwik wallet

Get 15% cashback upto INR 2000 via Mobikwik wallet

Save 18%

Get GST Invoice and save 18% on business purchases.

View full details

Overview

Protect your AC and enjoy complete peace of mind with V-Guard AC Stabilizer Series. Equipped with class-leading features, V-Guard AC Stabilizers are designed to complement the interior of your house, making it smart in design & savvy in safety. V-Guard ID5 Ace 5540 Stabilizer for 2 ton Inverter AC is the perfect solution for protecting your inverter AC from voltage fluctuations. In addition to these features, iD5 Ace 5540 also features ...

Model

ID5 ACE 5540

Sub Category

AC Stabilisers

Compatible Device

AC Compatible

Upto 2 Ton

Referigerator Compatible

N/A

Material

ABS

Mounting Type

Wall Mount

Warranty

Onsite

Color

WHITE

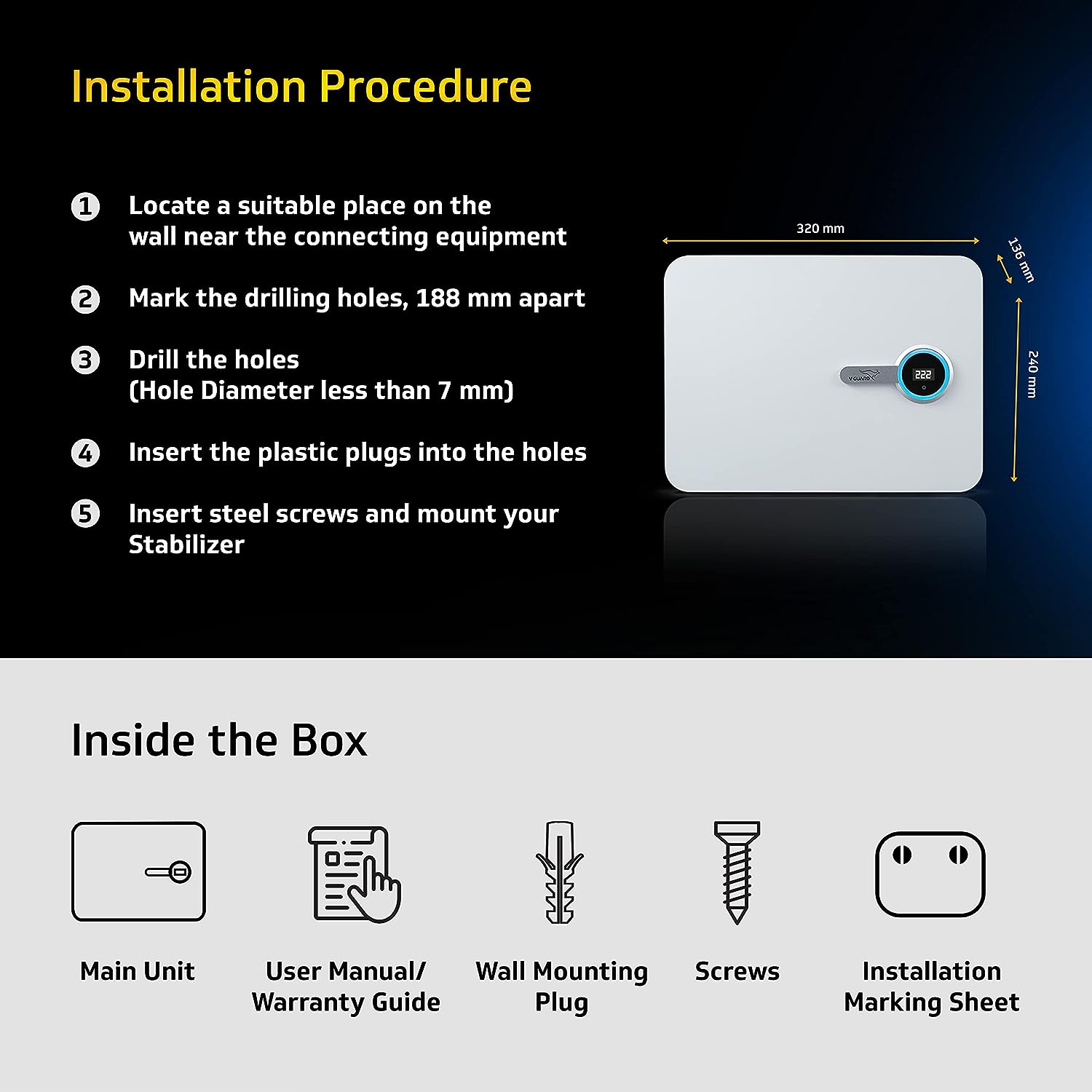

Included Components

1 Number each of Stabilizer, User Manual / Warranty Guide, Wall Mounting Screws

Warranty Period

3 Year

Manufactured By

V-Guard Industries Ltd. 42/962, Vennala High School Road, Vennala, Kochi- 682028, Kerala,

Country of origin

INDIA

DimensionLxBxH (mm)

320 mm X 240 mm X 135.4 mm

Device capacity/Size

Inverter AC Up to 2 Ton

Load Capacity

15A

Voltage

130 V-280 V

Dimension With Package-LxBxH (mm)

390 mm X 195 mm X 306 mm

Weight with Package

8.25 kg

Q:1. What is an electronic voltage stabilizer and do I need it?

A:Voltage Stabilizers, as the name suggests, help stabilize the voltage. This means, if the supply voltage fluctuates or varies, it automatically brings it to the desired range. Power surges can damage or destroy your household appliances and electronics, voltage stabilizers help operate the connected appliance/equipment in a safe voltage range.
It does so by using a combined mechanism of an auto transformer and electro-mechanical relays.

Q:2. How do I select the right stabilizer for my equipment?

A:A simple way to select the right stabilize

Check the Voltage & current rating of the device. It is written on the sticker near power socket else check the manual

In India typically the voltage will be 220V

Multiply 220 x Current of all devices and then add the individual device's VAs. Add a 20-25% safety margin to arrive at stabilizer rating. If you have plans to add more devices later, you can keep buffer for them

You should also consider the surge current which flows when you switch on the device

Q:3. How does the stabilizer protect the connected equipment?

A:The stabilizer will give a stabilized and safe voltage to the connected equipment within the specified limit even if the input voltage is high or low. It does so by using an auto transformer having a number of tapings, which will be selected as primary/ secondary for step up/ step down operations in accordance with the input voltage level. The tapping selection is done by using appropriate arrangement of relays.

Q:4. Is it necessary to use a stabilizer even if my refrigerator is stabilizer free?

A:Yes, no matter what the model, a stabilizer is required. There is no stabilizer inside the refrigerator. Refrigerator companies claim that it can work at both, low and high voltage. But operating the refrigerator at a low voltage affects its cooling efficiency and its life. Also, there is no low voltage cut-off & high voltage cut-off in the refrigerator. This is the reason major refrigerator companies insist on using a good quality voltage stabilizer, in their warranty card.

Q:5. Can I use normal TV stabilizer for my LCD TV?

A:It is advisable to use specially designed V-Guard LCD TV Stabilizer to protect and enhance the performance of your LCD TV. Compared to CRT TVs, the LCD / LED TVs are more sensitive to voltage fluctuations and spikes. The working ranges of LCD / LED TVs are from 90V to 290V. It shows that these TVs are more sensitive to high voltages.

Q:6. Can I use TV stabilizer for my refrigerator?

A:No, because the working range requirement for refrigerators and TV are different. Refrigerators require stabilizers with low voltage cut-off and time delay other than the high voltage cut off. However, the TV stabilizers are only equipped with a high voltage cut-off.

Q:7. Do I require installation for my V-Guard stabiliser?

A:V-Guard doesn’t offer installation service for stabilisers. Stabilisers can be installed at home either by you or a local technician.

Q:8. How can I get service help?

A:Our customer care will be available to support you on 0120- 4850100 or you can send your complaint on line via vg.care@vguard.in. We offer nationwide service center support.
