iMagno 410 AC Stabilizer for 1.5 ton Inverter AC (Working Range 170-270V)

MRP ₹ 3,400 30% Off ₹ 2,350

Add to cart

Skip to product information
1 of 8

iMagno 410 AC Stabilizer for 1.5 ton Inverter AC (Working Range 170-270V)

iMagno 410 AC Stabilizer for 1.5 ton Inverter AC (Working Range 170-270V)

Regular price MRP ₹ 2,350
Regular price MRP ₹ 3,400 30% Off Sale price ₹ 2,350

₹ 2,350(Inclusive of all taxes)

Service Charges *

Key features

  • AC stabilizer for 1.5 ton inverter AC
  • High and low voltage cut off
  • Intelligent Time Delay System
  • Micro-controlled Operation for Smart Output Voltage Correction

Model

IMAGNO 410

MAGNO 410

Compatible Device

Inverter AC Up to 1.5 Ton

Color: White

Offers

 offers image

Cash On Delivery available

Pay at the time of delivery. No advance payment needed*.

 offers image

Save 18%

Get GST Invoice and save 18% on business purchases.

 offers image

EMIs are available*

 offers image

Buy now pay later*

View full details

Overview

Protect your AC and enjoy complete peace of mind with V-Guard  AC Stabilizer Series. Equipped with class-leading features, V-Guard Stabilizers are designed to complement the interior of your house, making it smart in design & savvy in safety. V-Guard iMagno 410 Stabilizer for 1.5 ton Inverter AC is the perfect solution for protecting your inverter AC from voltage fluctuations. With its wide working range of 170 VAC - 270 VAC, iMagno 410 provides a stable and regul...

Read More

Specification

Model

IMAGNO 410

Sub Category

AC Stabilisers

Compatible Device

AC

AC Compatible

Upto 1.5 Ton

Referigerator Compatible

N/A

Material

ABS

Mounting Type

Wall Mount

Warranty

Onsite

Color

WHITE

Included Components

1 Number each of Stabilizer, User Manual / Warranty Guide, Wall Mounting Screws

Warranty Period

2 Year

Manufactured By

V-Guard Industries Ltd. 42/962, Vennala High School Road, Vennala, Kochi- 682028, Kerala,

Country of origin

INDIA

Read More

Technical Specification

DimensionLxBxH (mm)

277.2 mm X 190 mm X 118.3 mm

Device capacity/Size

Inverter AC Up to 1.5 Ton

Load Capacity

12A

Voltage

170 V-270 V

Dimension With Package-LxBxH (mm)

335 mm X 162 mm X 228 mm

Weight with Package

2.72 kg

Read More

FAQs

Q:1. What is an electronic voltage stabilizer and do I need it?

A:Voltage Stabilizers, as the name suggests, help stabilize the voltage. This means, if the supply voltage fluctuates or varies, it automatically brings it to the desired range. Power surges can damage or destroy your household appliances and electronics, voltage stabilizers help operate the connected appliance/equipment in a safe voltage range.
It does so by using a combined mechanism of an auto transformer and electro-mechanical relays.


Q:2. How do I select the right stabilizer for my equipment?

A:A simple way to select the right stabilize

  • Check the Voltage & current rating of the device. It is written on the sticker near power socket else check the manual

  • In India typically the voltage will be 220V

  • Multiply 220 x Current of all devices and then add the individual device's VAs. Add a 20-25% safety margin to arrive at stabilizer rating. If you have plans to add more devices later, you can keep buffer for them

  • You should also consider the surge current which flows when you switch on the device

  • Q:3. How does the stabilizer protect the connected equipment?

    A:The stabilizer will give a stabilized and safe voltage to the connected equipment within the specified limit even if the input voltage is high or low. It does so by using an auto transformer having a number of tapings, which will be selected as primary/ secondary for step up/ step down operations in accordance with the input voltage level. The tapping selection is done by using appropriate arrangement of relays.


    Q:4. Is it necessary to use a stabilizer even if my refrigerator is stabilizer free?

    A:Yes, no matter what the model, a stabilizer is required. There is no stabilizer inside the refrigerator. Refrigerator companies claim that it can work at both, low and high voltage. But operating the refrigerator at a low voltage affects its cooling efficiency and its life. Also, there is no low voltage cut-off & high voltage cut-off in the refrigerator. This is the reason major refrigerator companies insist on using a good quality voltage stabilizer, in their warranty card.


    Q:5. Can I use normal TV stabilizer for my LCD TV?

    A:It is advisable to use specially designed V-Guard LCD TV Stabilizer to protect and enhance the performance of your LCD TV. Compared to CRT TVs, the LCD / LED TVs are more sensitive to voltage fluctuations and spikes. The working ranges of LCD / LED TVs are from 90V to 290V. It shows that these TVs are more sensitive to high voltages.


    Q:6. Can I use TV stabilizer for my refrigerator?

    A:No, because the working range requirement for refrigerators and TV are different. Refrigerators require stabilizers with low voltage cut-off and time delay other than the high voltage cut off. However, the TV stabilizers are only equipped with a high voltage cut-off.


    Q:7. Do I require installation for my V-Guard stabiliser?

    A:V-Guard doesn’t offer installation service for stabilisers. Stabilisers can be installed at home either by you or a local technician.


    Q:8. How can I get service help?

    A:Our customer care will be available to support you on 0120- 4850100 or you can send your complaint on line via vg.care@vguard.in. We offer nationwide service center support.


    Read More

    Other Customers Also Bought

    Customer Reviews

    Based on 1 review
    0%
    (0)
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    Thiruvenkadan Narasimman
    V.good

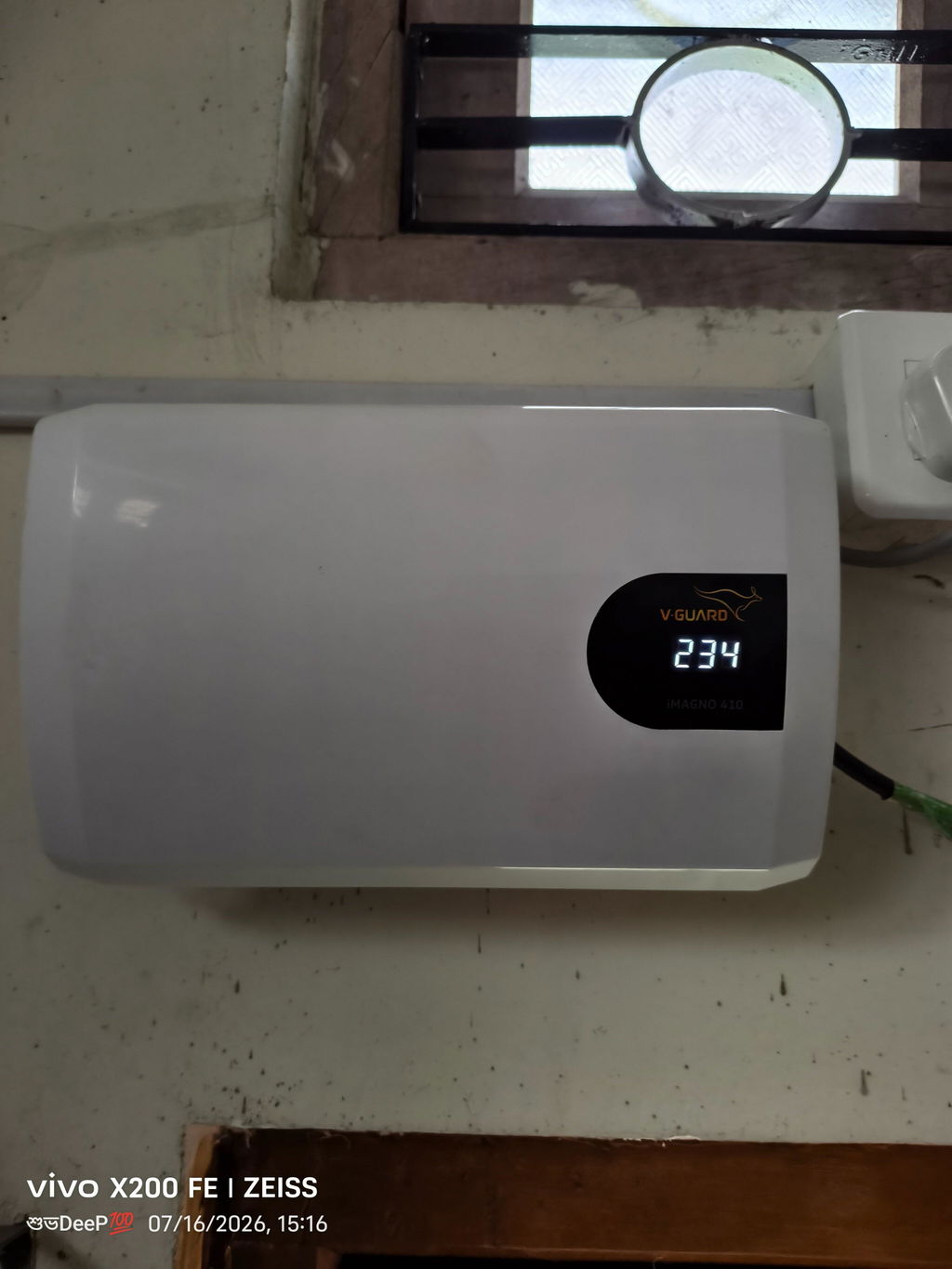

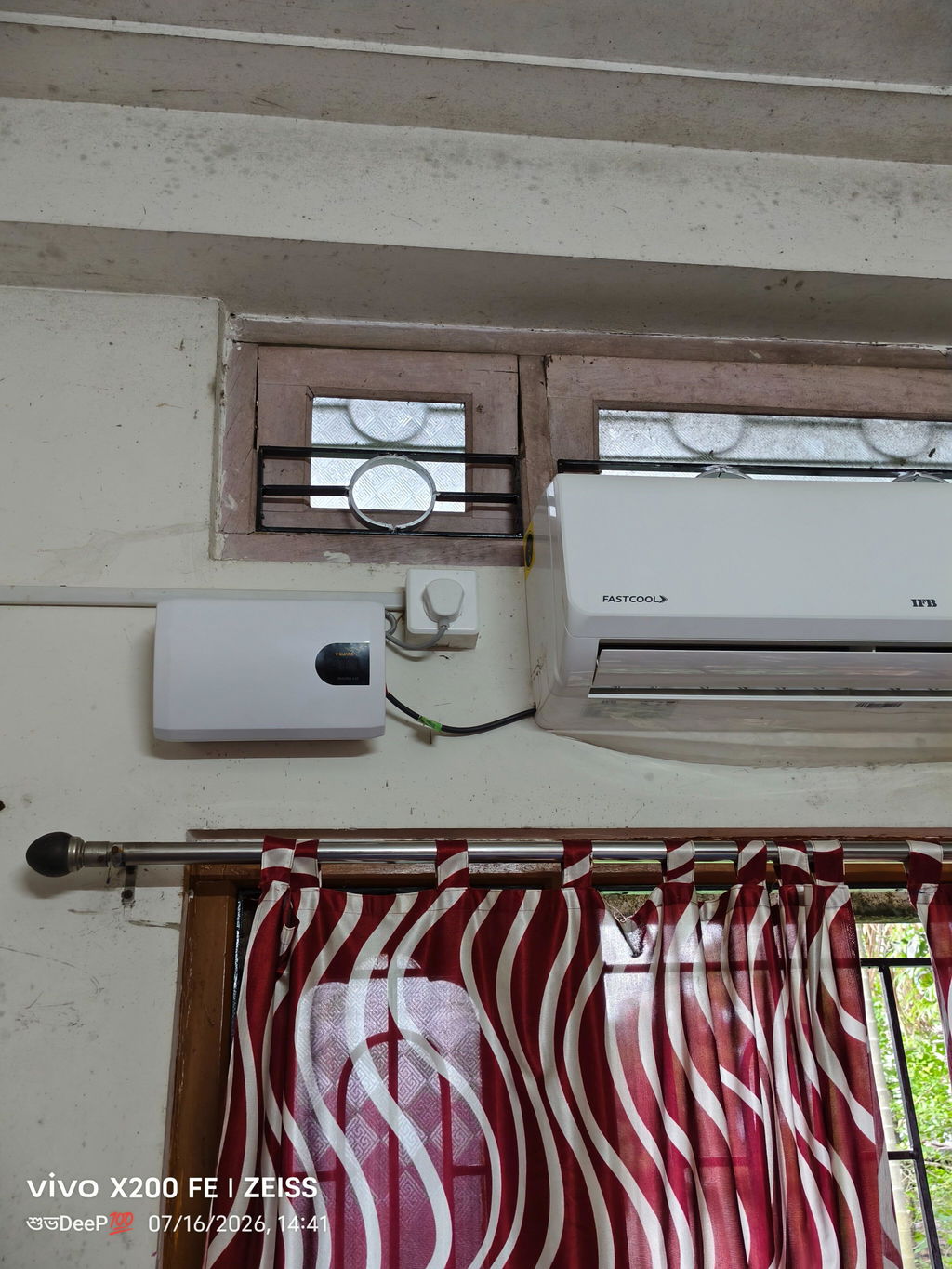

    I am using this product for my refrigerator for the past 6 months.1.5 ton AC for the last 6 months, both are OK 👍
